Renogy 12V 1400W RV Solar Kit with Installation Included

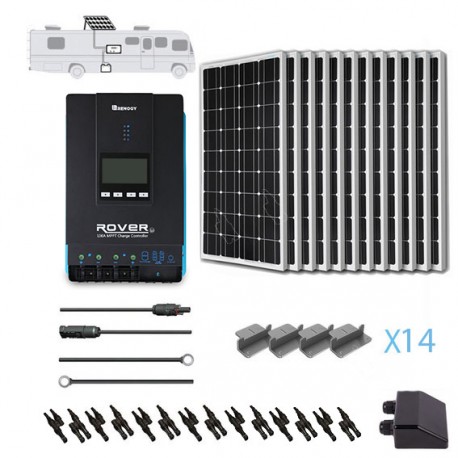

Taking a trip in your RV can create lifetime memories. Don't let traditional gas powered generators or power hookups slow you down. Renogy 1400 Watt 12 Volt Solar RV Kit silently recharges your batteries so you can enjoy the great outdoors without the extra noise. Solar panels also allow you to run limited low watt electrical equipment without a power hookup. Renogy RV Solar Kits are carefully arranged to meet your RV needs. This kit includes (14) Renogy 100W 12V Monocrystalline Solar Panels, a Renogy Rover 100A MPPT Charge Controller, a 30 ft 10AWG MC4 Adapter Kit, a 16 ft 10AWG Tray Cable, four pairs of branch connectors, one Renogy Cable Entry Housing, and 14 sets of Z Mounting Brackets.

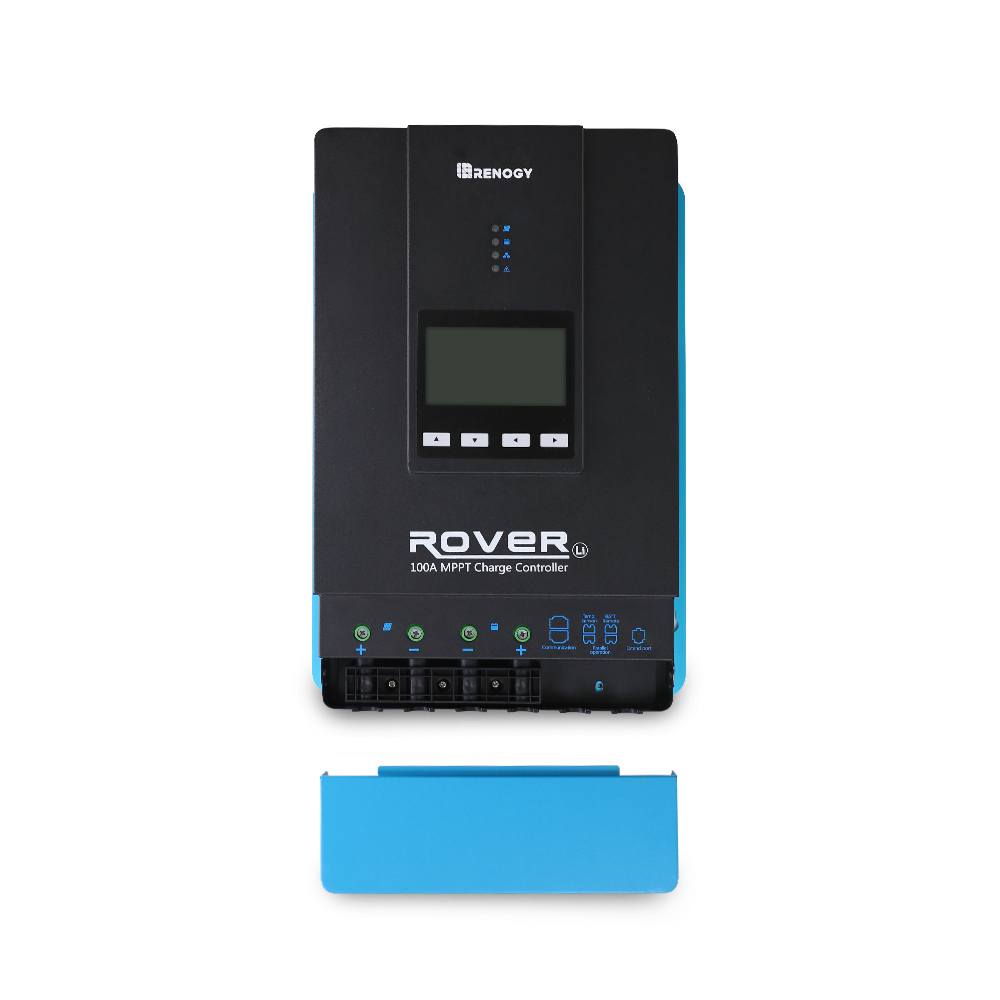

Renogy's new 100A Rover MPPT Charge Controller, the largest Rover controller that Renogy has to offer. Capable of supporting up to 1300 watts on 12 volts, 2600 watts on 24 volts, 3900 watts on 36V and 5200 watts on 48V. This off-grid controller was designed for large-scale projects, both mobile and stationary. For even more power, users can utilize a unique feature limited to this Rover and connect two 100A Rover controllers in parallel for a total of 200 amps! This smart charge controller can also conveniently self-diagnose itself in the event of an error and can be remotely controlled through the Renogy BT app using the Renogy BT-1 Bluetooth Module. By pairing the Rover with the BT-1 and the Renogy BT app through Bluetooth, users can easily monitor and adjust their solar system straight from their phones.

Key Features


  • High solar cell efficiency : Monocrystalline 18.4%
  • Bypass diodes minimize power drop caused by shade and ensure excellent performance in low-light environments


  • EL tested solar modules; no hot-spot heating guaranteed
  • Corrosion-resistant aluminum frame for extended outdoor use, allowing the panels to last for decades
  • TPT back sheet ensures smooth performance over a long period of time
  • IP65 rated junction box provides complete protection against environmental particles and low pressure water jets
  • Features diverse load control; also capable of charging over-discharged lithium batteries


  • Sealed, Gel and Flooded charging algorithm ready
  • 4-Stage battery charging process for a rapid, efficient, and safe battery charging
  • Deep Cycle Sealed, Gel, Flooded, and Lithium (12.8V LFP) battery option ready
  • Innovative MPPT technology with high tracking efficiency up to 99% and peak conversion efficiency of 98%
  • LCD screen and multiple LED indicators for displaying system operation information, customizable parameters, and error codes
  • RS232 and RS485 ports. RS232 allows the Rover to communicate with the BT-1 Bluetooth module, which can pair with the Renogy BT smartphone app. RS485 allows Rovers to be parallled


  • Electronic protection against reverse polarity, overcharging, over-discharging, overload, short-circuiting, and reverse current
  • Automatically detects 12V, 24V, 36V or 48V DC system voltages


  • With the Renogy Rover 100a Charge Controller, you can expand your system up to a maximum of up to 5200 Watts!

If you have any questions regarding this product, please call us at 1 (323) 627-2896 or email

Package Includes


Renogy 100W Mono Solar Panel

Dimensions: 42.2 X 19.6 X 1.38 In

100W Eclipse Solar Panel

14 x

Renogy Rover 100A MPPT Charge Controller


1 x

Renogy MC4 Branch Connectors


14 x Pairs

Renogy 30ft 10AWG MC4 Adaptor Kit


1 x

Cable Entry Housing

1 x

Renogy 16ft 10AWG Tray Cables


1 x

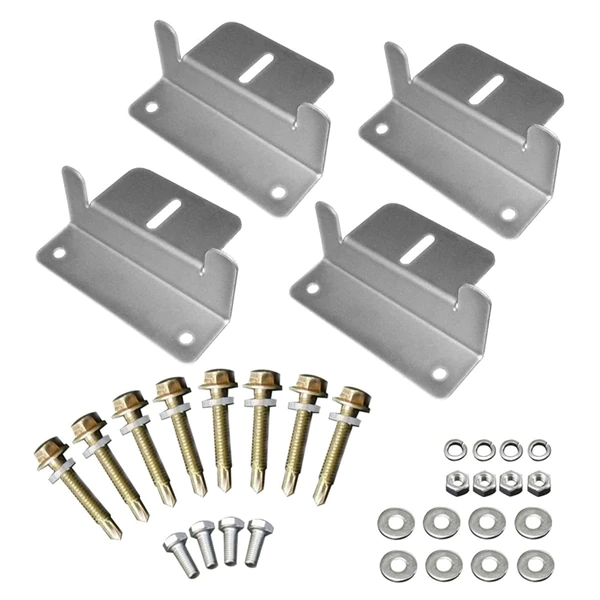

Mounting Z Brackets


15 x

Professional Installation


1 x
